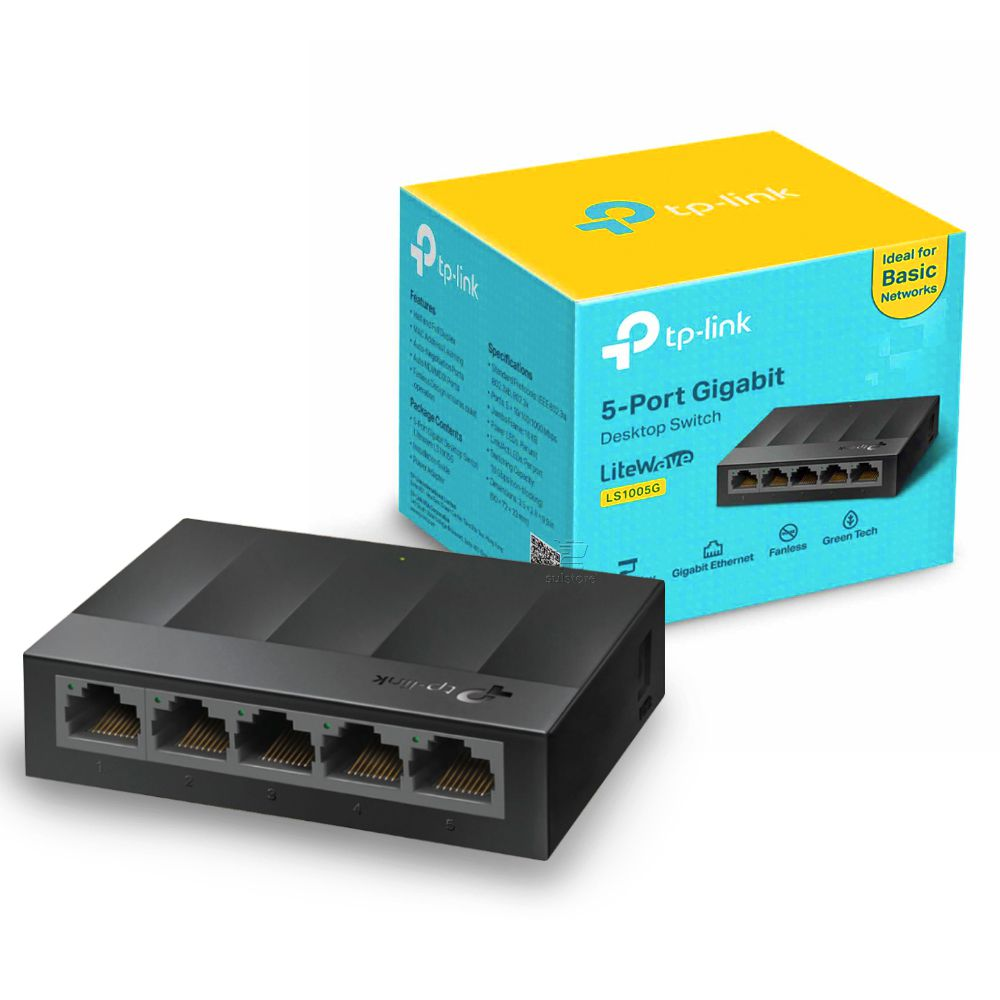

TPLINK Switch (LS1005G)
₱539₱524
In stock
Brand: TP-Link
● 5× 10/100/1000Mbps Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX
● Green Ethernet technology saves power
● IEEE 802.3X flow control provides reliable data transfer
● Plastic casing, desktop or wall-mounting design
● Plug and play, no configuration needed
● Fanless design ensures quiet operation
Technical Specifications
Hardware Features
Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x
Interface: 5× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity: Fanless
External Power Supply: External Power Adapter (Output: 5VDC/0.6A)
Dimensions ( W x D x H ): 3.5 × 2.8 × 0.9 in. (90 × 72 × 23 mm)
Max. Power Consumption: 3.7W
Max. Heat Dissipation: 12.617 BTU/h
Performance
Switching Capacity: 10 Gbps
Packet Forwarding Rate: 7.4 Mpps
MAC Address Table: 2K
Packet Buffer Memory: 1.5 Mb
Jumbo Frame: 16 KB
Software Features
Advanced Features:
Green Technology
802.3X Flow Control
Back Pressure
Transmission Method: Store and Forward
Others
Certification: CE, FCC, RoHS
Package Content: 5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
